ESDEX Series

Smart | Economic | Powerful

Ergonomic High Performance ESD generators up to 30 kV

The ESDEX Series introduces a new range of small, modular ESD generators from the world’s leading ESD tool vendors. The ESD simulator has simple controls and a contemporary display, enabling smooth communication, comfortable usage, and ease of operation. They have been designed with today’s test requirements in mind, providing flexibility and reliability.

With its modular design, users can easily add features and options as needed, which allows them to expand the functionality of the ESDEX ESD gun, making it extremely versatile for different test needs. Available in 8kV, 16kV, and 30kV versions, with a variety of interchangeable RC networks for compliance with international standards like IEC61000-4-2, ISO-10605, RTCA DO-160, and MIL-STD-461

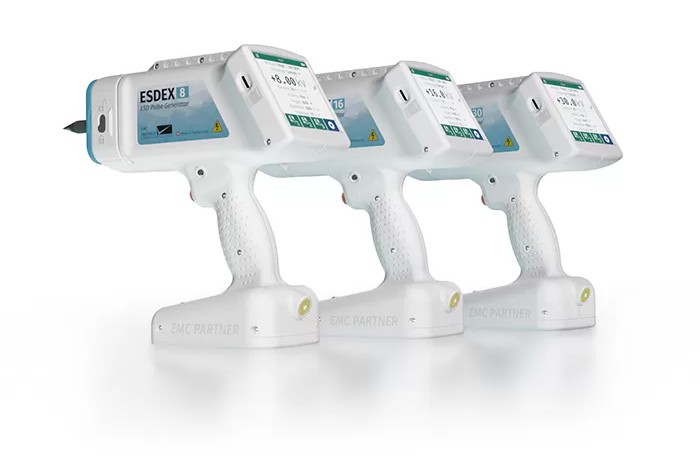

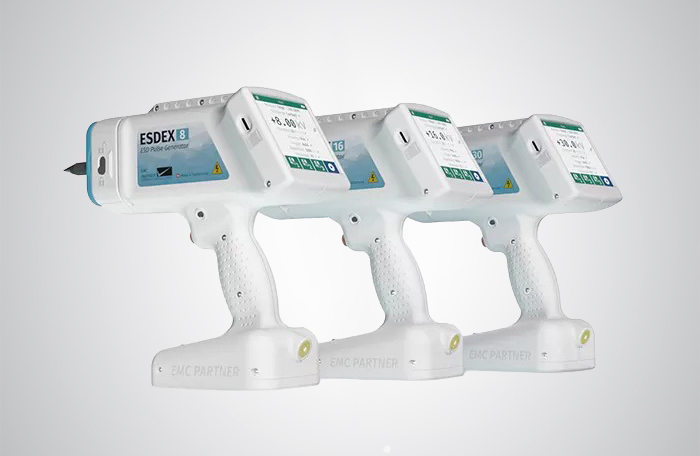

Models & Variations

The ESDEX series is designed and tailored to give users the freedom to select a generator configured to their exact needs.

There are three product types — 8 kV, 16 kV, and 30 kV — and customers can choose from a range of RC networks, options, features, and accessories to create a solution that perfectly meets their requirements. Depending on your type of business or application—whether a lab, performing specific standard tests or R&D testing—there is an ESDEX generator perfectly suited to your needs.

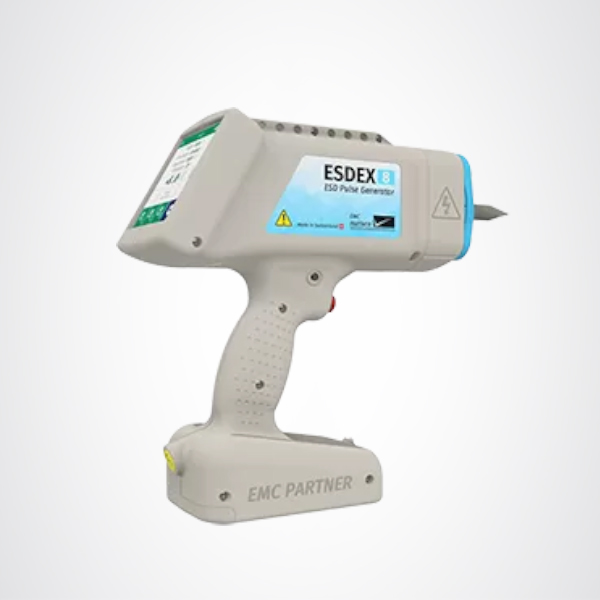

ESDEX8

8 kV ESD generator with 150 pF / 330 Ω RC network.

Easy and simple operation, ideal for carrying out R&D tests and quality testing during development phases.

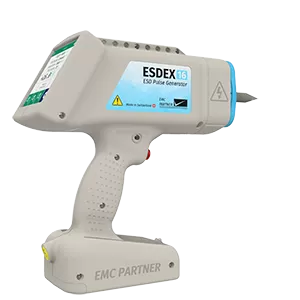

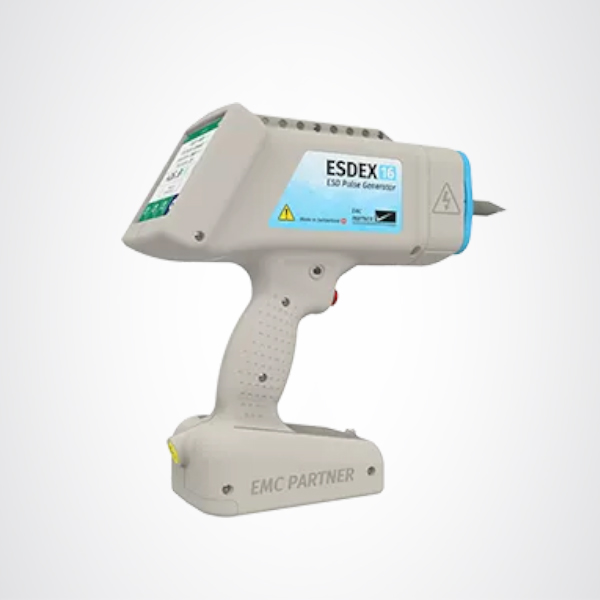

ESDEX16

16 kV ESD generator with exchangeable RC networks.

The ideal solution for various product standard testing up to 16 kV. Upgradeable to 30 kV.

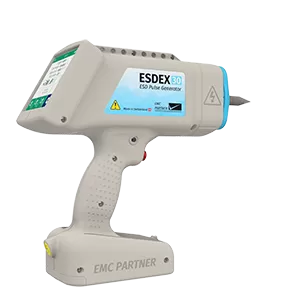

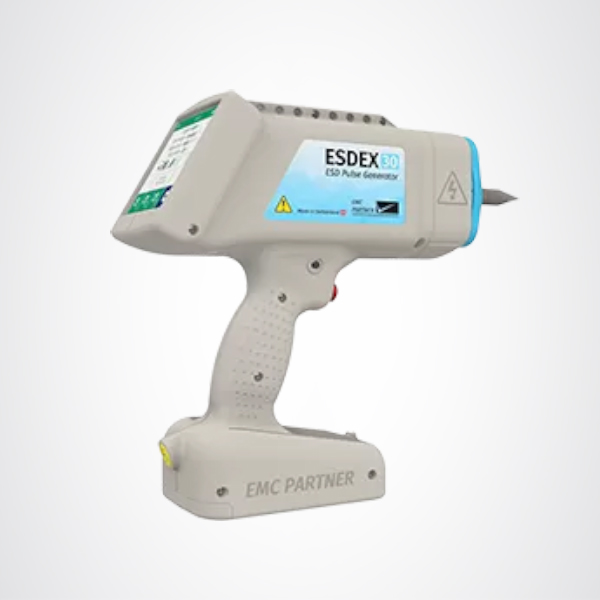

ESDEX30

30 kV ESD generator with exchangeable RC networks.

Suitable for higher voltage test level requirements such as automotive testing, and larger testing laboratories that require more flexibility.
