Insulation Test Generators From 0.5 To 30KV

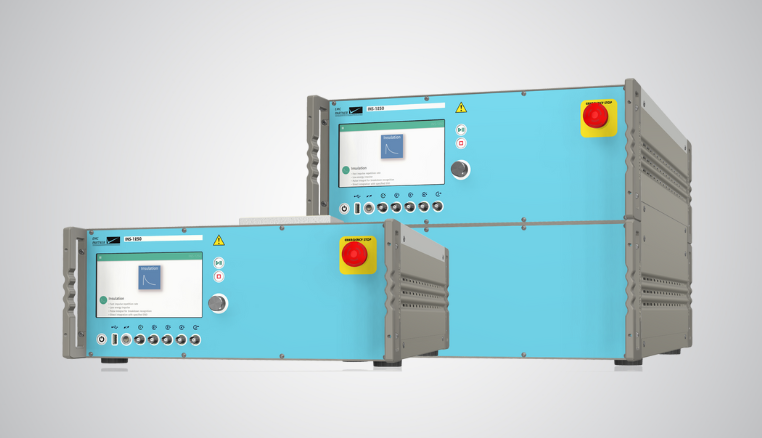

Insulation-Test-Generator2

Insulation Test Generators From 0.5 To 30KV

  • The 1.2/50μs lightning impulse forms the basis for a variety of insulation test applications. From simple
  • Insulation tests of material to dielectric breakdown of transformers.
  • Insulation test as per IEC 60060-1, IEC 61010-1, IEC 61180, IEC 60335-1, IEC 60664-1 of latest editions

Insulation Test Generators From 0.5 To 30KV

Advantages

  • Reliable solid-state technology means solid state high voltage
    switches
    deliver reproducible impulses.
  • Optimal models corresponding to normative test levels up to
    7.5 kV, 15 kV, 22.5 kV or 30 kV.
  • The 7.5 kV model can be subsequently upgrade to 15 kV and
    the 22.5 kV model can be upgraded to 30 kV.
  • Output impedance can be selected in the range 40 Ω - 4 kΩ
    (default 40 Ω)
  • The tolerance of impulse voltage is just ± 3 % while measurement circuits offer a ± 2 % tolerance. This level of performance allows
    the implementation of voltage and current integrals (available
    with OPT-INS- MEAS).
  • Automatic PASS/FAIL detection
  • 15kV solution in size of 4HU and 30kV solution in size of 8HU
